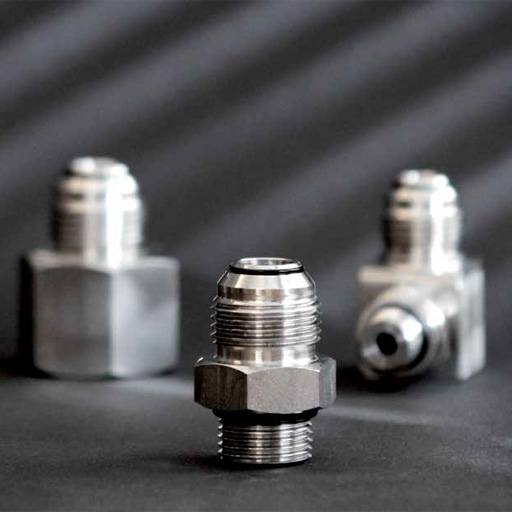

JIC FLARE FITTINGS

All GS-JIC 37° flare fittings comply with SAEJ 514 (ISO 8434-2). In addition to basic JIC 37° flare fittings, GS-Hydro also delivers special JIC 37° flare fittings – either with or without an O-ring – which are type approved by Det Norske Veritas. GS-Hydro’s JIC-fittings are specified by NORSOK (specification classes FS70, IS70) to be used offshore.

Technical Data

Carbon steel				AISI 316	AISI 316 and Carbon steel with o-ring
Tube OD, mm	Tube OD, inch	Max. tube wall thickness, mm	Max. allowable working pressure, bar	Max. allowable working pressure, bar	Max. allowable working pressure, bar
6	¼	1.5	430	430	600
8	5/16	1.5	430	430	600
10	3/8	1.5	430	430	600
12	½	2.0	350	350	490
16	5/8	2.5	350	350	490
18	¾	2.5	350	350	490
20	–	2.5	350	350	490
22	7/8	2.5	350	350	490
25	1	3.0	250	250	420
30	–	4.0	250	250	420
38	1½	5.0	250	250	420
Note! All pressures are for fittings and NOT for tubes

Carbon steel and stainless steel (AISI 316) GS-JIC 37° flare fittings without an O-ring may (according to the type approval from DNV) be used for the following media:

Freshwater
Seawater
Sanitary
Compressed air
Hydraulic
Fuel oil (JIC to NPTF only)
Lubricating oil (JIC to NPTF only)
Steam and condensate
Fire water
Deluge systems

Carbon steel and stainless steel (AISI 316) GS-JIC 37° flare fittings with an O-ring may be used (according to the type approval from DNV) for the following media:

Freshwater
Seawater
Sanitary
Compressed air
Hydraulic
Steam and condensate
Nitrogen
Shield gas
CO2
Fire water

The following O-ring materials should be used:

For gas-media AFLAS 100H/100S
For other media Nitrile 70 shore

Carbon steel and stainless steel (AISI 316) JIC 37° flare fittings may be used for a wide range of applications including hydraulic, freshwater, fuel and lubricating oil among others. The maximum allowable working pressure of JIC 37° flare fittings (according to ISO 8434-2) are as follows:

JIC 37° Flare Fittings (According to ISO 8343-2)
Tube OD, mm	Tube OD, inch	Max. tube wall thk, mm	Max. allowable working pressure, bar
6	¼	1.5	350
8	5/16	1.5	350
10	3/8	1.5	250
12	½	2.0	250
16	5/8	2.5	250
20	–	2.5	200
22	7/8	2.5	160
25	1	3,0	160
30	–	3,0	125
32	1 1/4	3,0	125
38	1 1/2	3,0	100
